Rainshower SmartActive 310 Shower system with thermostat for wall mounting
GROHE Rainshower 310 SmartActive Shower system – minimalist design meets maximum comfort!
- consisting of:
- horizontal swivable 450 mm shower arm
- exposed thermostat with Aquadimmer function
- allows change between:
- Rainshower Cosmopolitan 310 head shower
- material: metal
- with ball joint
- rotation angle ± 15°
- Rainshower SmartActive 130 hand shower 3 sprays
- adjustable in height with gliding element
- Silverflex shower hose 1750 mm
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE SafeStop safety button at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C included
- GROHE CoolTouch no risk of scalding
- GROHE DreamSpray perfect spray pattern
- GROHE SmartTip showering spray selection via push of a ring
- GROHE LongLife finish
- GROHE FastFixation upper bracket adjustable
- GROHE SpeedClean effortless limescale removal
- suitable for instantaneous heaters from 18 kW/h
- minimum flow rate 5 l/min

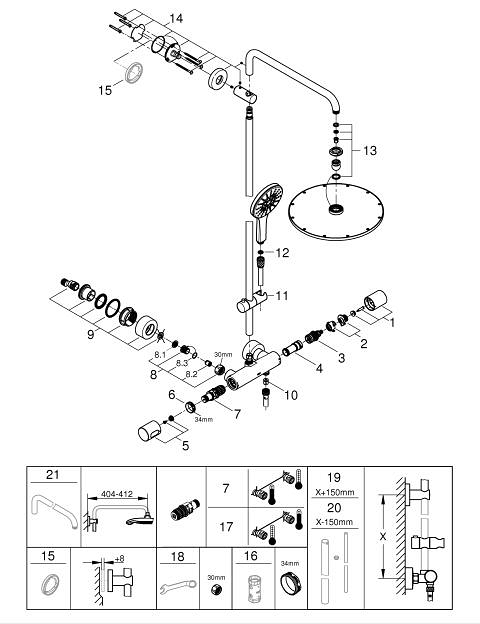

CAD Data
| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Aquadimmer handle | 47804000 |
| 2 | Stop | 47723000 |
| 3 | Aquadimmer | 47364000 |
| 4 | Water flow | 47887000 |
| 5 | Temperature scale handle | 47811000 |
| 6 | Fitting ring | 47743000 |
| 7 | Thermostatic compact cartridge 1/2" | 47439000 |
| 8 | Non-return valve | 47189000 |
| 8.1 | Dirt strainer | 0726400M |
| 8.2 | Non-return valve | 08565000 |
| 8.3 | O-ring ø 17 x ø 2 | 0305500M |
| 9 | S-union | 12693000 |
| 10 | Non-return valve | 08565000 |
| 11 | Glide element | 12140000 |
| 12 | Dirt strainer | 0700200M |
| 13 | Spare part set | 45933000 |
| 14 | Shower rail holder | 48279000 |
| 15 | Compensation disc | 27180000* |
| 16 | Socket spanner | 19332000* |
| 17 | GROHE TurboStat cartridge 1/2" | 47175000* |
| 18 | Special spanner | 19377000* |
| 19 | Shower system pipe for retrofitting | 48053000* |
| 20 | Shower system pipe for retrofitting | 48054000* |
| 21 | Shower arm for shower systems | 14047000* |
