Eurosmart Cosmopolitan E Powerbox

Product Number
36386001
EAN
4005176311673
Colour
chrome
Rating
873,52 PMC + DDV

Product Description

  • of 36 445 000
    Essence E
    infra-red electronic basin mixer 1/2"
    with mixing device and adjustable temperature limiter
  • with infrared sensor for bi-directional communication
    for monitoring, configuration and servicing
  • including Powerbox self-generating power system
  • GROHE EcoJoy 6.0 l/min mousseur
  • including all flexible connection hoses
  • non-return valve
  • dirt strainer
  • rapid installation system
  • Powerbox
  • power generator with water turbine
  • internal energy saving unit
  • with use of 60 s/24 h stand-by, 260 s/100 h stand-by
  • with additional backup power
  • 7 pre-set programs:
  • auto flush
  • thermal disinfection
  • cleaning mode
  • additional functions and precise settings by remote control 36 407
  • min. recommended pressure 1.0 bar

Technical Information

CAD Data

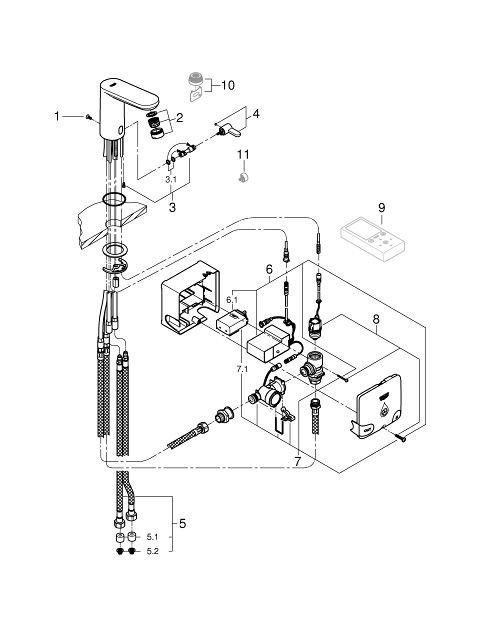

Spare Parts

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Screws 4283100M
2 Mousseur 42832000
3 Mixer spindle 42402000
3.1 Sealing washer 4284000M
4 Mixing lever 42401000
5 Connection hose 42403000
5.1 Non-return valve 4240400M
5.2 Dirt strainer 4241300M
6 Electronic 42458000
6.1 Battery housing 42393000
7 Generator 42457000
7.1 Battery housing 42393000
8 Solenoid valve 42456000
9 Remote control 36407001*
10 Mousseur 36133000*
11 Hidden mixing device 42408000*
