Zedra Single-lever sink mixer 1/2″
Product Number
32294DC2
EAN
4005176466502
Colour
supersteel
€
572,18
PMC + DDV
- single hole installation
- GROHE Long-Life finish
- GROHE SilkMove 35 mm ceramic cartridge
- GROHE Magnetic Docking guarantees easy retraction and smooth docking of the spray head back to the starting position
- pull-out spray with 3 spray types
- diverter: laminar spray/SpeedClean shower jet/GROHE Blade spray (reduced water consumption by up to 70 % and even stronger spray performance)
- stop function - pause button to stop the water flow
- automatic return to laminar spray
- adjustable flow rate limiter
- swivel tubular spout
- swivel area 360°
- protected against backflow
- flexible connection hoses
- Lead and Nickel Free Inner Water Ways
CAD Data

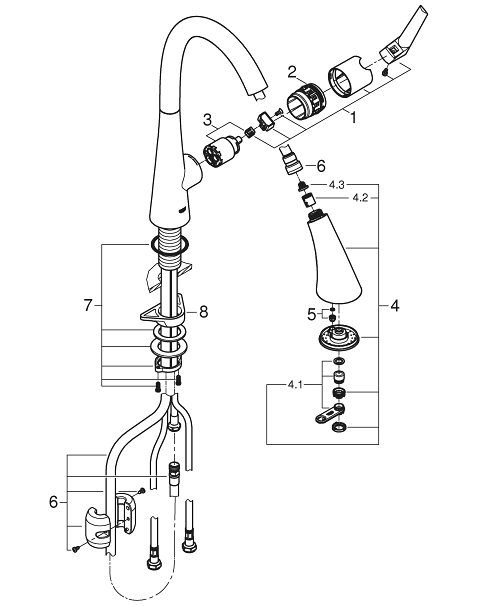

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| 1 | Lever | 48476DC0 |
| 2 | Screw ring | 48517000 |
| 3 | Cartridge | 46374000 |
| 4 | Pull out spray | 48473DC0 |
| 4.1 | Flow straightener | 48275000 |
| 4.2 | Non-return valve | 08565000 |
| 4.3 | Dirt strainer | 0676800M |
| 5 | flow rate limiter | 48303000 |
| 6 | Shower hose | 48472000 |
| 7 | Mounting set | 48477000 |
| 8 | Support plate | 05334000 |
| 9 | Coupling piece | 46338000 |
