Eurosmart Cosmopolitan Single-lever shower mixer 1/2″
- wall mounted
- metal lever
- GROHE SilkMove 46 mm ceramic cartridge
- GROHE LongLife finish
- adjustable flow rate limiter
- shower bottom outlet 1/2" with integrated non return valve
- without unions
- centre distance 153 mm
- protected against backflow
- optional temperature limiter ref. no. 46 308
CAD Data

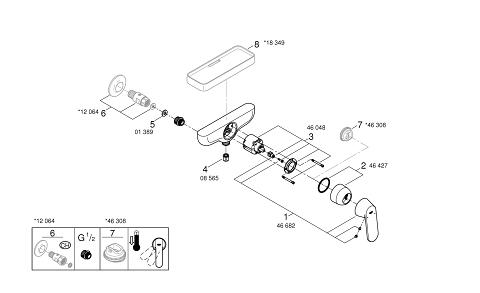

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Lever | 46682000 |
| 2 | Cap | 46427000 |
| 3 | Cartridge | 46048000 |
| 4 | Non-return valve | 08565000 |
| 5 | Fibre seal Ø 18,5 x Ø 12 x 2 | 0138900M |
| 6 | Straight union, lockable | 12064000* |
| 7 | Temperature limiter | 46308000* |
